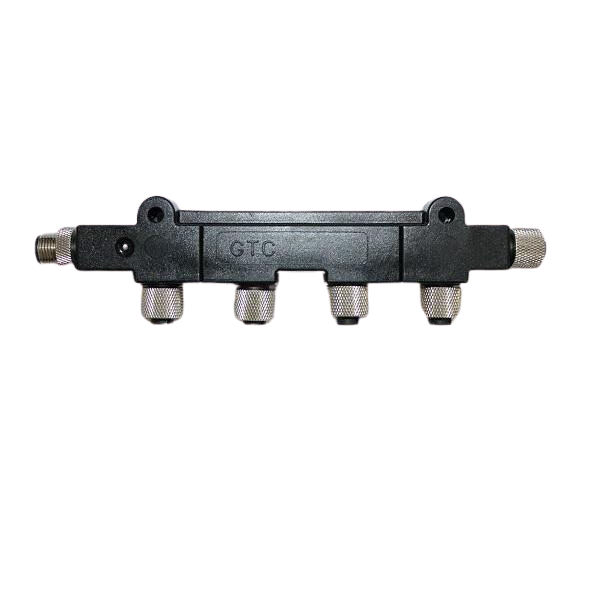

Micro 6 Port 30V 4A 5P With LED
代碼 GT2731N6-11050
規格:
電流: 4.0A
線徑: 22 AWG
Voltage: 5 PIN: 30V AC/DC
耐溫範圍: -25° / +85°
防水等級: IP 68
電流: 4.0A
線徑: 22 AWG
Voltage: 5 PIN: 30V AC/DC
耐溫範圍: -25° / +85°
防水等級: IP 68
| Material | |
|---|---|
| Cable End Base/Cover | PA66 |
| Cable End Screw Nut | Zinc Alloy With Ni Plated |
| Cable End O-Ring | Silicone |
| Cable End Contacts | Copper Alloy With Au Plating |
| Cable End Inner Mold | PE |
| Cable End Over Mold | PVC |
| Technical Data | |
| Insulation Resistance | DC500V±10%‚ test for 1 minute and the insulation resistance should be more than 100MΩ |
| Contact Resistance | 10mΩ Max. |
